Automatic Premade Bag Filling And Sealing Machine

Automatic Premade Bag Filling And Sealing Machine

    Min. Order: 1 Set/Sets
    Packaging: wooden case
    Brand: Durzerd
    Transportation: Ocean
    Place of Origin: china
    Port: ShangHai

Product Description

Brief Introduction:

According to different materials, Rotary packing machine can be divided into three different configurations and applications. They are applied to granular, powder and liquid materials respectively. When rotary packing machine is equipped with multihead weigher mechanism. This equipment is specialized in granule, such as grain, chips, cookies, puffed food, peanut, chile, dry fruits, frozen fruits, pasta, beans, chia seeds, gum, refined gourmet powder, granular drug, capsule, seed, chemistry condiment, granulated sugar, candy, chicken essence, melon seeds, nuts, pesticide, fertilizer, etc. This premade bag packing machine is suitable for automatic packaging of small packaging bags, medium bags, small metering strip bags of various powder and granular products. This equipment can also be combined with secondary packaging machine or carton box packing machine to form a secondary packaging production line. The production line can improve production efficiency and save labor costs.

Applicable bag type: Premade bag (flat bag, stand-up bag, zipper bag, M bag)

Features:

1. The whole machine has eight-station or ten-station structure, and the operation is controlled by PLC and large-screen touch screen. The operation is simple and convenient.

2. Supporting fault automatic tracking alarm system, real-time display of operating status.

3. The mechanical empty bag tracking and detection device can realize the bag opening, blanking and sealing.

4. The main drive system adopts variable frequency stepless speed regulation control, full cam transmission, stable operation and low failure rate.

5. The design of the whole machine complies with GMP standards and has passed CE certification.

Application:

This product can be used to different area with optional auxiliary devices .

1. Solid Species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.

2. Granule Species: grain, refined gourmet powder, granular drug, capsule, seed, chemistry condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, etc.

Sample bag type:

Rotary Bag Packing Machine

Rotary Packing Machine For Granule

Rotary Packing Machine

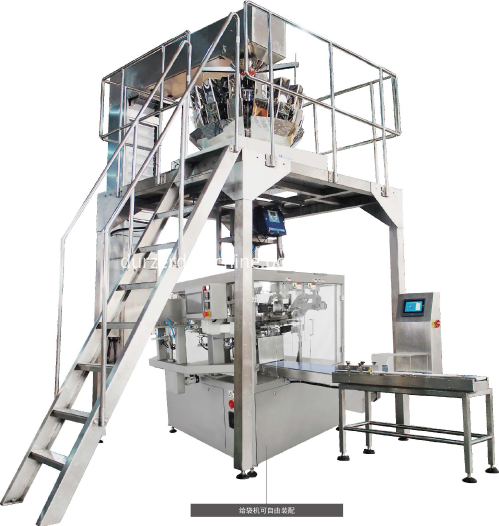

Rotary Packaging Machine+Platform+Multihead weigher+Granule Z Type Elevator

Rotary Packing Machine For Granule

Rotary Packaging Machine

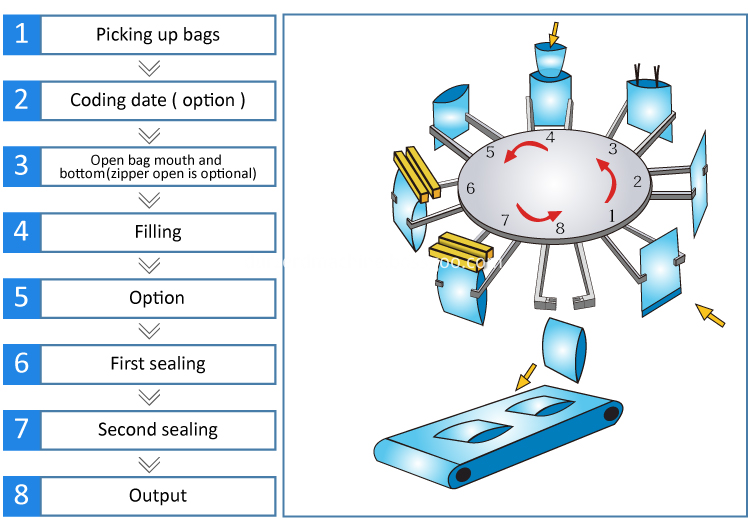

Location function and operation flow chart

Rotary Pouch Packing Machine

Additional location function

According to the bag specifications and form, combined with the production material, corresponding to choose the following additional features used in the machine:
1. 5 stations tong material (cylinder tong material, suitable for use of liquidity is not high and twice raw material adding)
2. 6 stations tong (cantilever barrels of material)
3. The exhaust (applicable to eliminate gas needed materials)
4. Under vibration (also called bag vibrate, applicable to material block or large material)
5. Level bags (applicable to zipper bags and soft bag)
6. Open the zipper bag (applicable to zipper bag)
7. Close zipper (applicable to zipper bag)
8. The open bag (applicable to zipper bag and not easy to open the bag)
9. Hopper vibration (applicable to low liquidity material)
10. Sweep dust and dust (applicable to powder)


Technical Parameters

Model

ZD100A

ZD80F

ZD80K

Speed

82 bags/min

70 bags/min

60 bags/min

Pouch size

L≤360mm
W:80-210mm

L≤400mm
W:130-250mm

L≤400mm
W:150-300mm

Working position

10

8

8

Pouch pattern

Premade bag (flat bag, stand-up bag, zipper bag, M bag)

Gas source

6Kg/cm²,0.4 m³/min

Pouch material

Single layer PE, PE composite film, paper film and various other composite films

Weight

700kg

700kg

720kg

Voltage

380V/7.0Kw

Dimensions

1950×1400×1520mm

1950×1400×1520mm

2100×1500×1520mm
