Color Metal Large Span Roof Tile Making Machine

Color Metal Large Span Roof Tile Making Machine

    Unit Price: USD 19800 - 49800 / Set/Sets
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: as customer requirem
    Productivity: 30 sets/month
    Brand: ZHONGTUO
    Place of Origin: China
    Supply Ability: 30 sets/month
    Certificate: CE, ISO9001

Basic Info

Model No.: ZT-1000-610

Product Description

Color Metal Large Span Roof Tile Making Machine:

Color Metal Large Span is formed by trailer type roller system device can be transported to the construction site to make continuous arch steel buildings. Various manufacturing plate device driven by electric hand stitched together operation stitching machine connect the panel together.

Color Metal Large Span can be used to satisfy almost any building function from housing, warehousing and storage facilities, maintenance buildings, aircraft hangars, agricultural and livestock buildings, commercial facilities, recreational structures or any other use that may be required.


Advantages of No Beam Roof Tile Machine:

a. There is a brake system on our uncoiler, if the machine stops suddenly, the uncoiler can be stopped accordingly.

b. 14-steps to form, including the first step--Rubber shaft, it fixes steel sheet tightly from the beginning. Also there is one row Rubber Roller in the middle of each shaft, coordinating different thickness of steel sheets tightly when roll forming.

c. No Beam Roof Tile Machine includes 20 wider rollers than other supplier, which can make the appearance of finished sheet more beautiful and stronger.

d. No Beam Roof Tile Machine`s rollers and axles are connected with a pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and axles more tighten and work for a long time without deformation.

e. Gear, Sprocket driving from superior workmanship.

Main parameters of Arching Roof Panel Roll Forming Machine :

1 Mounting dimension: 8900mmX2100mmX2300mm(With single axle 4 tires)

2 Total weight: About 8 Ton

3 Control system: electric control

4 Cutting type : Mechanical Cutting

5 Seaming Power: 1.1KW+1.1KW

6 Total motor power : 15.2KW

7 Material of rollers: 45# steel, quenched HRC 58-62

8 Material of roller shafts: 45# steel, quenched HRC 55~65, hard chrome plating

9 Material of cutting blade: 12CrMoV material, Heat treatment

10 Step of rollers: 13 steps

11 Working Speed : Forming Part : 15m/min, Bending Part: 13m/min,Seaming : 16m/min

12 Max span: 4~28m

One profile drawing for reference (1000-610):

Large Span Roof Tile Making Machine

Deatiled pictures of Arching Roof Roll Forming Machine:

a.There is brake system on de-coiler, if the machine stop suddenly, the de-coiler can be stopped accordingly.

b.Arching Roof Panel Roll Making Machine includes 20 more wider rollers than other supplier`s machine, which can make the appearance of finished arch more beautiful.

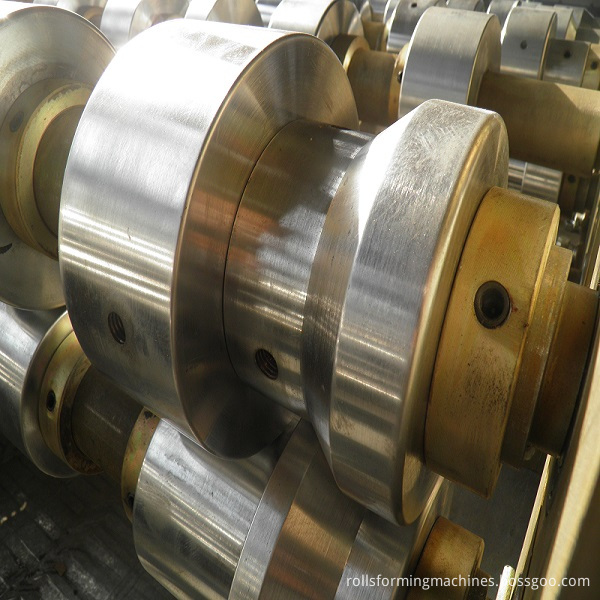

c.Arching Roof Panel Roll Making Machine`s rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.

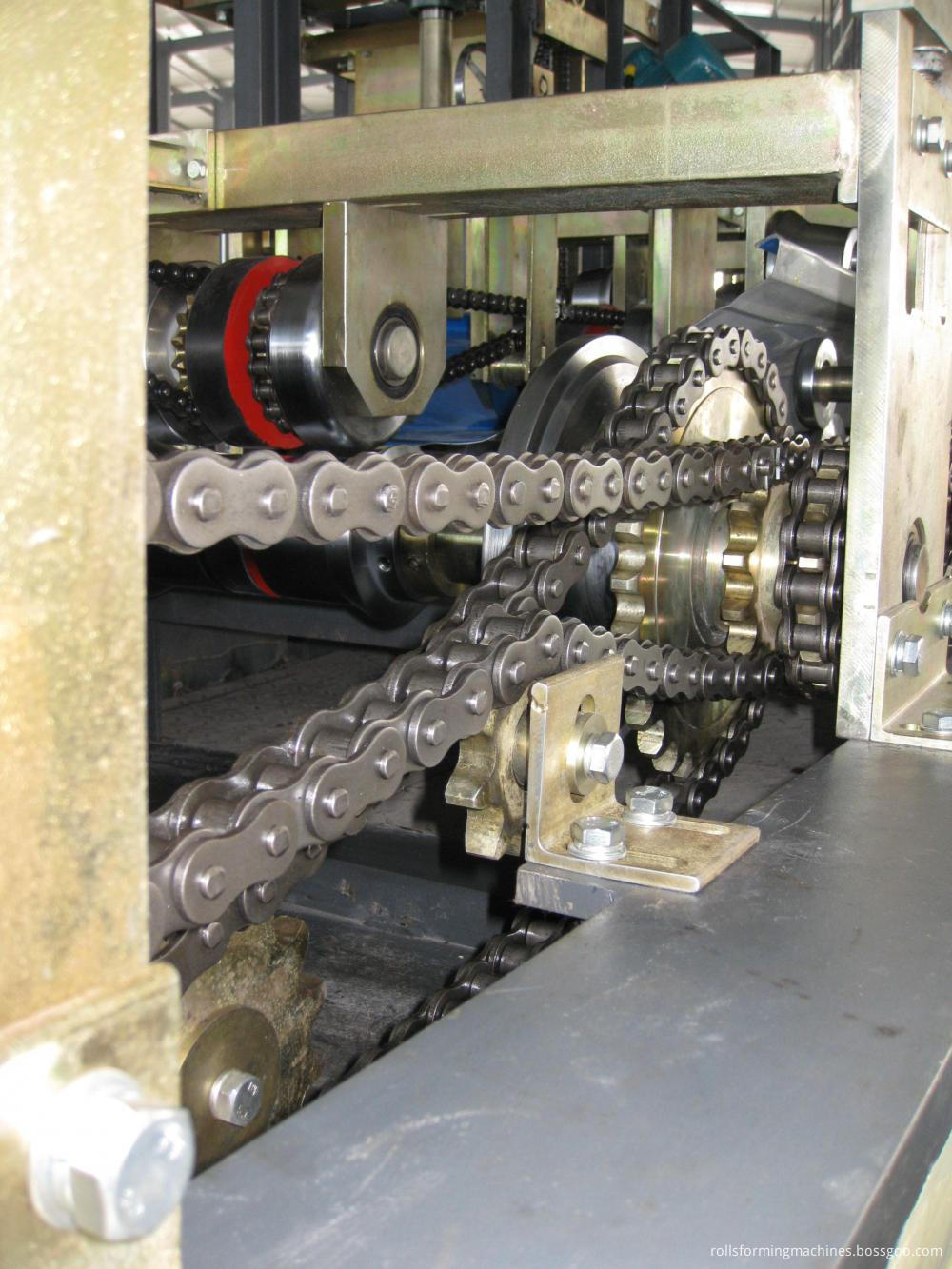

d.Gear, Sprocket driving from superior workmanship.

f.Cutting material: Cr12 MoV, best and sharpest cutting material

Arching Roof Roll Forming Machine

Arching Roof Panel Roll Making Machine
Arching Roof Panel Roll Forming Machine


 Steel And Metal No Beam Roof Tile Machine
